Tools Required
The tools required are very basic and common to most knifemaker's shops:- Hacksaw
- Vise
- Files
- Needle file set
- Hammer
- Punch
- Drill & Bits (preferably drill press)
- Sandpaper
- Permanent marker (fine tip)
Materials
Any round stock, stainless rod is ideal as it won't rust when working on damp leather. Look for something in the 5/16" to 3/8" diameter which will work great. I happened to find some alloy rod from discarded crib at the dump.

I marked and cut the rod into 4" pieces with a hacksaw.



Example of Double- D.
STAMP #1: LIGHTNING BOLT
I made this for no other reason than I think lightning bolts are cool and could make a good border stamp.
I then start working the lines with a triangle needle file, using the corner to cut then the flats to remove material outside the line.

Memo here: The stamp will always appear backwards to how it looks when you are working on it. IMHO the lightning bolt should be going the other way, but I can live with it in reverse.
STAMP #2: LEAF
Leaves make good borders for all kinds of things. Organic in a way. So this was my next choice. I started with a simple sketch on a round end and worked the outside into a leaf shape.

I am pretty sure that this will come in handy.

STAMP #3: BUBBLE BLOCK
Bubble Block started as a square end.

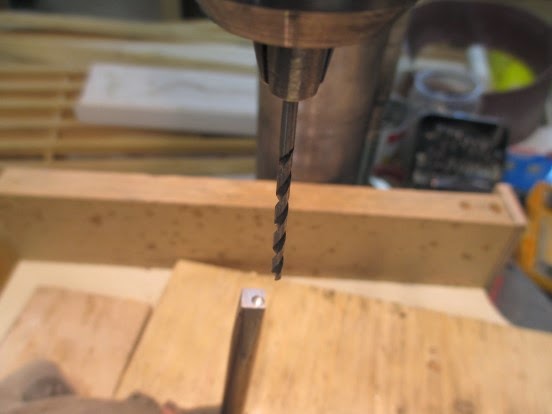

Then I drilled some shallow random sized holes on the drill press.



STAMP #4: BRANCH
Hey, if Leaf gets a stamp then Branch is the next logical step.



STAMP #5: SCALLOPED LINE


This will certainly be a part of some handsome looking borders.
STAMP #6: DOT CROSS
Rectangles can make a strong border. This little guy started as a rectangle end.Drill a single 5/64" hole.
Then make cuts with the corner of the triangle needle file.

Very effect and eye catching. (wear your safety glasses kids.)
STAMP #7: DEATH STAR
I have no idea where this came from. It was very early in the morning.Started with a round end and...
Death Star emerges!
STAMP #8: RANDOM IMPACT
The sequel to Bubble Block. It was made by punch a round end with a centre punch. Random impacts and varying force puts a cool effect.

Touch the jagged bit up with sand paper.

And here they are all together again.

If you are lucky enough to have some genuine native Canadian wood (e.g. 2x4) you can drill some holes and make this awesome holder to complete your kit.
Many other ideas came into my head while doing this, heating with a torch, whacking a file into one, bobby pins, using screw heads etc. Let your imagination take you where you want to go.
All the best.
D
