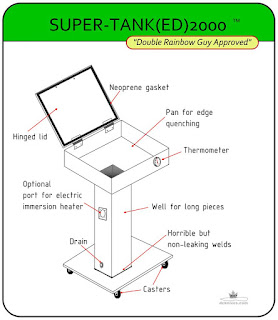

I had this idea a while back while on coffee break and sketched a quench tank that would accommodate both horizontal and vertical quenching. It was kind of like a piece of pipe with a box welded on top with a lid. I called it the SUPER-TANK(ED) 2000 as a joke.















Fast forward a few months and some trips to the local dump and I had what I needed to make the idea come to life. I found a 20 lb fire extinguisher. I checked with a magnet to make sure it was steel and not aluminum. After unscrewing the valve I noticed there was still a little powder in there which I vacuumed out.

I ran a band of electrical tape around the cap seam, trying to keep it as straight as possible. Then clamped as best  I could the extinguisher body to my table saw.







Using an angle grinder and cutting disc I walked around the top, adjusting the position by un-clamping, rotating and re-clamping as I went.

 There's the inside. The steel walls look like to be about 12 gauge or 0.1". The outside diameter is 7".
I had an old 16" x 12" x 10" electrical enclosure with the mounting pan and door missing and some extra holes drilled in it.

Using a compass I marked a 7" hole in the back of the enclosure.
The red line is where I centered the circle better in the center of the enclosure back. I drilled two 5/16" holes just inside the line.
 Using the jig saw and a good steel cutting blade I walked around the line from hole to hole.
 Voila! Very close to 7" in diameter.
The cut is not perfectly on the line.

So I used a  coarse sanding drum on the cordless drill to clean up the cut.







Here I am test fitting the two pieces. Using the belt sander I cleaned the paint off the top of the fire extinguisher body.


 A small grinding wheel can be used to take the paint off the enclosure. This should be free of paint before welding.
Inside the enclosure I cut the mounting pan studs off with the angle grinder and cutting disc.
 Using the cutting disc again I tool the flange off the door opening of the enclosure.
 Cutting the flange off  leaves a sharp and ragged edge, so it gets some attention with the grinding wheel as well.
 As this enclosure had no lid, I cut a piece of 1/8" cold rolled to fit the opening.
 Tack welded on two hinges 2.5" from the ends.
 Drilled a 7/16" hole 2" up from the bottom. The hole goes through the bottom bell and the side wall, so it's double thick at this spot. About 0.2" thick.
 Tapped with a 1/4" NPT (tapered pipe thread) tap.
 A 1/4" nipple and cap are threaded on with teflon tape to seal the threads.
 I cut and drilled four 1.5" angle iron legs. The holes are drilled to 5/16".
I put the enclosure on the welding bench and pressed the fire extinguisher into the hole. With the welder I went around attempting to seam weld these pieces together. It looked ok, but I applied some silicone from the inside just in case. I also siliconed bolts, washers and nuts to seal any holes.
 For the base I steel framed dolly with some 3/4" MDF wood screwed on to it. The steel frame is made from 1" square tubing. I was lucky enough to get the cross members of the frame to line up with the angle iron legs on on the extinguisher body.






I made a lid stop and pop riveted it on the back (hinge) side. Black spray paint on and added a cool little aluminum cabinet door handle. The lid stop will be screwed in later.


 Once mounted to the base, I added some cool stripe tape.

The enclosure has a grounding stud on the inside where I mounted a dollar store cooking thermometer.
Tightened the drain cap and put in about 9 gallons of water. Checking for leaks. So far so good.

Drained the water out on the grass.
Filled her up with just over 33 litres or about 9 gallons of used turkey fry canola oil. Mmmm smells like Thanksgiving!









The lid stop is from a toggle clamp and can be adjusted up or down.
